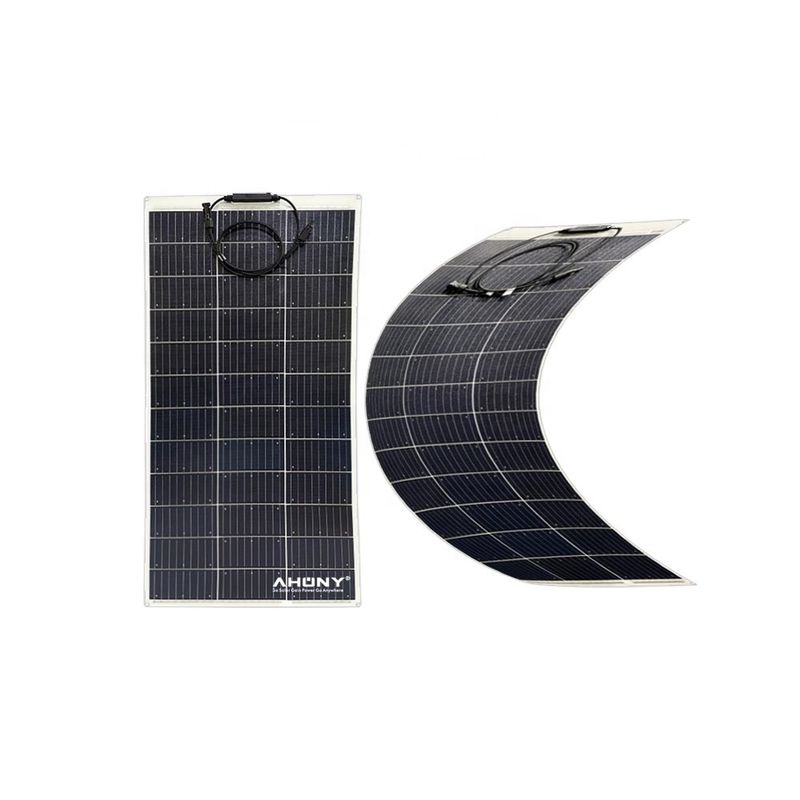

105w Flexible Solar Panels Solar Module For Vans Trailer CE ROHS Certificated

105w Flexible Solar Panels Solar Module For Vans Trailer CE ROHS Certificated

Brand Name:	AHONY
Model Number:	eGo S105M
MOQ:	4 pieces
Price:	$72.00/pieces 4-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Cell Size:

158.75mmx158.75mm

Panel Dimensions:

510*1035*2mm

Panel Efficiency:

18.94%

Cell Quality:

Bendable Solar Cells

Weight:

1.6kg

Cell Efficiency:

24%

Packaging Details:

1pcs per carton box,plywood pallet for 55w semi flexible solar panel

Highlight:

105w Flexible Solar Panels

Trailer Flexible Solar Panels

105w Solar Panels For Vans

Product Description

HJT 105w Solar Module More Power Than PERC Best Weak Light High Temper Power For Vans Trailer Output 100w Solar

Product Description

AHONY HCF cell flexible solar panel has HJT cell,multi bus bar technology and copper foundation solar cells.Cell efficiency

up to 24%.HJT is more advanced technology compared to PERC.Better weaklight and high temperature performance.

Advantage:

1. Mlti busbar cell technology reduced power loss by cell crack

2. Less cell distance shorten the current transit distance and reduced 15%
inner resistance.

3. Copper foundation flexible cells

The solar cell have copper foundation like SunPower.
The cell is bendable and copper ribbon on back still
gathering current when cell crack.

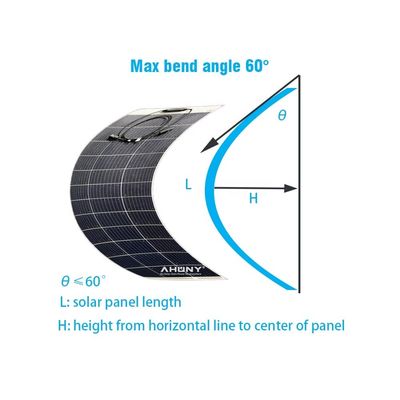

4. 60°Max Arc and Aerodynamic

Bendable and the maxium angle is 60degree,
for arc 1000mm distance,the bend height is 345mm.
Aerodynamic design for all mobile use like caravan,
boat,marine,motor etc.

5. 24% Solar Cell Efficiency

Premium quality bificial HJT solar cells,latest technology.
Bificial cell increase 10%-20% power using transparent
backsheet.

Model No.	eGo S105M
Product Name	semi flexible solar panel
Maximum Power[Wp]	105
Solar Cell	HJT HCF solar cell
Cell Array[Pcs]	3*12
Cell Efficiency	24%
Size[mm]	51010352
Max Power Voltage Vmp[V]	22.32
Max Power Current Imp[A]	4.71
Open Circuit Voltage Voc[V]	26.33
Short Circuit Current Isc[A]	4.99
Net.Weight[kg]	1.6
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.43
Temperature Coefficient Voc[[%/℃]	-0.34
Temperature Coefficient Isc[[%/℃]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[A]	IR<2A-0
Certification	CE ROHS
Surface/Backsheet	ETFE+AP2
Maximum bend radius(θ)	60°
Cables and Connectors	Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes	round corner R10,with eyelets
Package	1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
